Best LED Floodlights: A Comprehensive Guide

Quick answer: Choose LED floodlights by the light output and coverage your space needs, then match the enclosure protection and controls to the installation. Compare lumens for output and watts for power use (FTC lighting guide).

This guide covers choosing floodlights for a yard, entrance or work area. It explains weather ratings, beam geometry, colour and motion control, with assumed calculations you can adapt to your own dimensions. It does not rank products: a useful choice starts with the area you want illuminated and the light you want to keep within it.

How many lumens do LED floodlights need?

Size the illuminated area before choosing a wattage. Lumens describe light output; lux describes light arriving on a surface. According to Wikipedia's lumen reference, one lux equals one lumen per square metre. Consequently, the same arriving light spread across a larger area produces a lower average illuminance.

Choose a lumen target for a defined area, rather than treating a backyard as a fixed size. A calculation with an explicit target is more informative than a large wattage printed on a box.

Worked example: an assumed rectangular area

Assumed inputs: an area measuring 8 m by 5 m, an average target of 20 lux, and ideal delivery with all the specified light arriving uniformly inside that rectangle. The target is an illustration, not a recommended outdoor lighting standard.

• Area = length × width = 8 × 5 = 40 m².
• Light arriving on the area = area × average illuminance = 40 × 20 = 800 lumens.
• Reverse check: average illuminance = arriving lumens ÷ area = 800 ÷ 40 = 20 lux.

That result describes light reaching the rectangle. It does not establish that an 800-lumen fixture will deliver the assumed result: the example has deliberately excluded spill outside the area and uneven distribution.

For an enclosed garage or workshop, the room lighting calculator uses area multiplied by a room-specific foot-candle planning figure. Its room presets are not outdoor floodlight targets. Use the area-times-illuminance relationship here without borrowing an indoor target for the yard.

What do IP65, IP66 and IP67 mean?

Read the dust and water digits separately. According to Wikipedia's IP Code reference, IP means Ingress Protection and the system is defined in IEC 60529. The first digit describes solid-particle protection; the second describes water protection.

The following distinctions are according to that reference, rather than a direct quotation from the IEC standard:

According to the same IP reference, a first digit of 5 means dust-protected: some dust may enter, but not enough to interfere with safe operation. A first digit of 6 means dust-tight.

Do not treat the water digit as a universal better-to-best ranking. According to Wikipedia's IP Code reference, immersion ratings beyond IPX6 are not cumulative: IPX7 does not automatically demonstrate IPX5 or IPX6 jet protection. Choose the stated protection for the exposure involved, rather than treating “waterproof” as a complete specification.

Which beam angle covers the space?

Use the angle together with the distance to the target. In simple cone geometry, increasing the angle at a fixed distance increases the footprint. ENERGY STAR explains that LEDs are directional sources, which helps direct their output where it is needed (ENERGY STAR LED guide).

The beam angle calculator uses this geometric relationship:

Beam diameter = 2 × distance × tan(angle ÷ 2)

Worked example: an assumed beam aimed straight down

Assumed inputs: a 90° circular cone, with the light 6 m above a flat target and aimed perpendicular to it.

• Half-angle = 90° ÷ 2 = 45°.
• Diameter = 2 × 6 × tan(45°) = 12 × 1 = 12 m.
• Radius = diameter ÷ 2 = 12 ÷ 2 = 6 m.
• Circular area = π × radius² = π × 6² = 36π ≈ 113.1 m².

This is the calculator's geometric footprint, not a promise of uniform brightness within the circle. A tilted beam also falls outside this perpendicular-circle example. Use it to compare coverage before deciding how much of the beam should overlap the intended area.

The light spacing calculator provides a rectangular room grid based on ceiling height and fixture type. That is useful for comparing an indoor layout with an outdoor aiming problem, but its grid does not calculate the footprint of a tilted wall-mounted floodlight.

What colour temperature should you choose?

Choose the appearance you want, separately from output. Lower kelvin values look warmer; higher values look cooler. The colour-temperature reference identifies 2,700 K as soft white and 3,000 K as warm white for LED lamps, with 5,000 K corresponding to horizon daylight and 6,500 K to overcast daylight.

For a warm-looking patio, shortlist the warm end of that comparison. For a cooler daylight appearance, shortlist the higher end. These are appearance choices, not proof of greater brightness or better security. Compare the lumen output separately so a colour preference does not become an accidental change in output.

Controls, heat and lifetime: what matters before purchase?

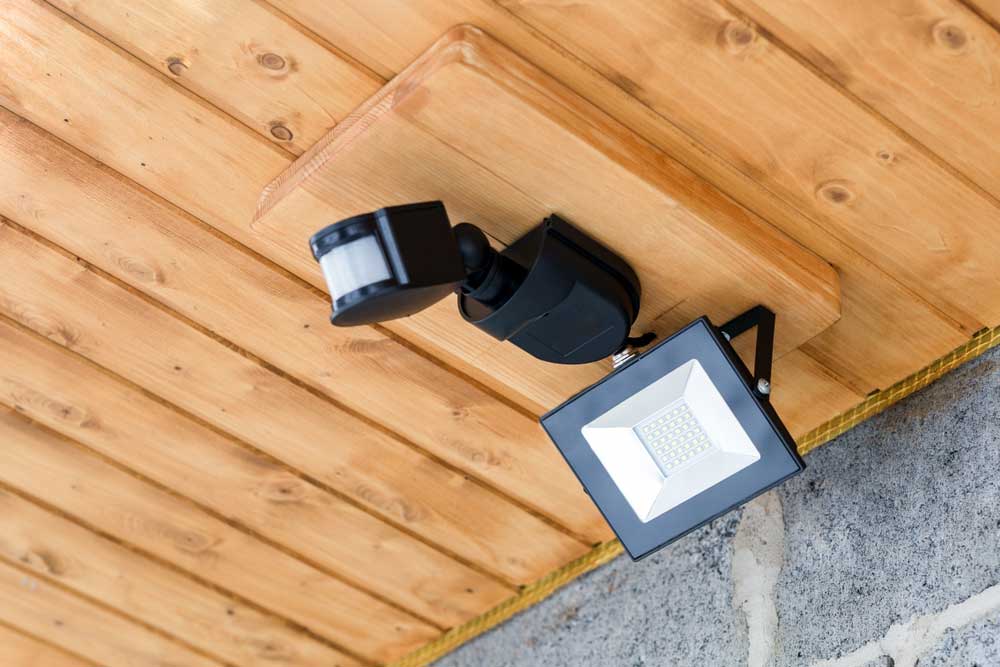

Decide whether you want continuous illumination or activation on approach. According to Wikipedia's security-lighting reference, passive infrared sensors can activate lights when a person or another mammal approaches. Motion activation therefore does not mean human-only detection.

Lifetime also needs a definition. The DOE LED basics guide describes LED lifetime in terms of reaching 70% of initial output; ENERGY STAR describes the corresponding predicted 30% output decrease. This is an output-maintenance measure, not a guaranteed moment of total failure.

Use this purchase checklist:

• Compare lumen output with the area and beam footprint you intend to cover.
• Match the enclosure's stated dust and water protection to its exposure.
• Choose continuous operation or motion activation deliberately.
• Distinguish the rated output-maintenance life from a warranty or a failure guarantee.
• Include heat management in the comparison: LEDs use a heat sink to absorb heat and protect performance (ENERGY STAR LED guide).

For a mains-powered installation, use a qualified electrician for hardwiring or changes to existing wiring.

FAQ

Should I choose floodlights by lumens or watts?

Use lumens to compare output and watts to compare power use (FTC lighting guide). Then compare coverage: output alone does not describe where the light lands.

Is IP67 always better than IP66?

No. According to Wikipedia's IP Code reference, immersion protection does not automatically establish water-jet protection. Match the claimed test protection to the intended exposure.

How many lumens does my backyard need?

Start with area and an explicit illuminance target. In the assumed example above, arriving lumens = 40 m² × 20 lux = 800 lumens; that idealised result is not a universal backyard recommendation or a fixture-output guarantee.

Will a wider beam be brighter?

A wider cone covers more area at the same distance. If the same arriving lumens are spread uniformly across that larger area, average lux decreases because illuminance = arriving lumens ÷ area.

Are cooler floodlights better for security?

Colour temperature describes appearance, so it cannot by itself establish security performance. According to Wikipedia's security-lighting reference, bright, unshielded floodlights can be counterproductive by concealing activity and helping intruders see; consider aiming and shielding alongside colour.

Does rated LED life mean the light stops working then?

No. The DOE LED basics guide typically describes it by the time to 70% of initial light output. That describes declining output rather than a guaranteed failure time.
